3D D28 Welding Table Featuring Quick Fixturing and Clamping Capabilities

Name: 3D D28 Welding Table Featuring Quick Fixturing and Clamping Capabilities
Brand: WUXI LEMAR
Price: 500 USD

3D D28 Welding Table Featuring Quick Fixturing and Clamping Capabilities Manufactures

Supply Ability : 500 units/month

Hole Spacing : 100 mm × 100 mm, tolerance ±0.05 mm

Model Number : D28

Surface Treatment : Gas nitriding

MOQ : 1 PCS

Delivery Time : 15-25 work days

Perpendicularity Tolerance : 0.1 mm / 200 mm

Payment Terms : L/C,D/A,D/P,T/T

Structure : 3D five‑sided machined (top + four side faces)

Flatness Tolerance : ≤0.1 mm / 1000 mm

Price : 500-1500 USD

Available Material : Q355 low‑alloy steel / HT300 cast iron

Table Plate Thickness : 25 mm

Standard Working Height : 620mm

Certification : CE

Place of Origin : WUXI , CHINA

Packaging Details : 4000*2000*200mm

Brand Name : WUXI LEMAR

Hardness : 550-800HV

Contact Now

3D D28 Welding Table Featuring Quick Fixturing and Clamping Capabilities

The 3D D28 Welding Table Featuring Quick Fixturing and Clamping Capabilities is a professional modular 3D welding worktable adopting industry‑standard D28 hole system with 100 mm grid pitch. All five working faces are precision‑machined to allow multi‑angle fixturing and clamping, breaking the limitation of conventional 2D welding tables which only provide top‑surface mounting.

Combined with comprehensive D28 fixture kits, it realizes quick fixturing, reliable holding and easy‑reconfiguration for different welding parts. Raw material undergoes strict stress‑relief aging process to prevent long‑term warping, while nitriding treatment delivers high hardness against welding spatter and abrasion. Multiple tables can be spliced for oversized fabrications, making it widely applied in heavy‑equipment manufacturing, chassis welding and prototype development.

Size Specification Chart

Item	Specification
Hole System	Standard D28 (Φ28mm)
Hole Pitch	100mm × 100mm, tolerance ±0.05mm
Structure	3D five‑sided machined (Top + 4 side faces)
Table Material	Q355 Low‑alloy Steel / HT300 Cast Iron
Table Thickness	25mm optional
Flatness	≤0.1mm / 1000mm
Perpendicularity	0.1mm / 200mm
Surface Treatment	Gas nitriding
Nitriding Layer Depth	0.15‑0.25mm

Principles of Quick Fixturing

The complete D28 fixture set is designed to fit directly into the hole pattern of D28 welding tables, enabling rapid workpiece clamping and securing:

Quick-locking pins and quick-action clamps (manual operation eliminates the need for time-consuming bolt tightening)
L-shaped squares, U-shaped blocks, angle adjustment blocks, and V-blocks
Telescopic clamping assemblies, side clamping blocks, and positioning stops
All accessories can be freely combined, allowing a single platform to accommodate a wide variety of weldments—offering distinct advantages for small-batch, high-mix production.

Product Advantages

Lower weld rework thanks to reliable repeat positioning
Save workshop floor space by ditching bulky fixed jigs
Precisely bored D28 holes, no loose‑fit clamping trouble
Two material options for impact‑load or high‑heat working scenarios
Ideal for prototype, R&D and custom job‑shop orders
One‑stop supply: bare table / stands / full fixture packages
Full‑item inspection with test documentation available
Simple field leveling, no special ground foundation required

Verified Customer Feedback (USA Workshop User)

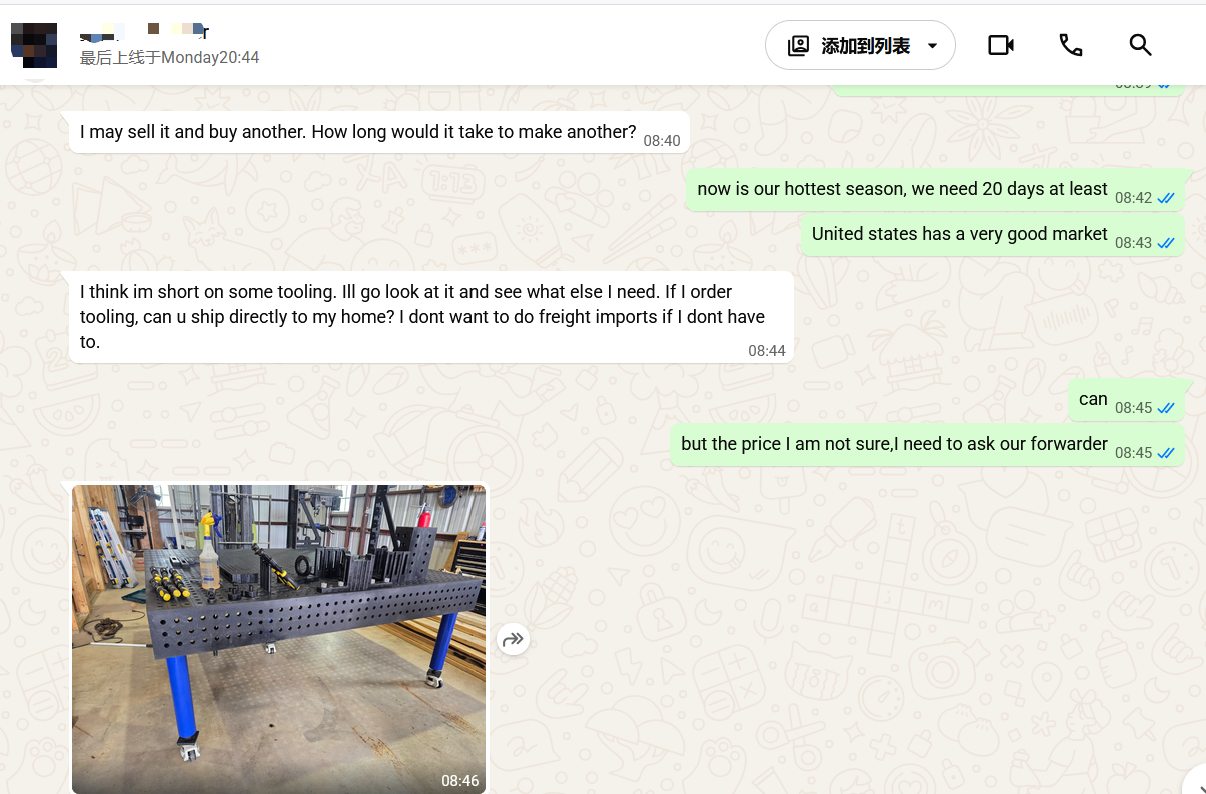

Real‑shop photo submitted by our end‑user. This 3D welding table performs reliably under daily heavy‑duty welding & fixturing tasks. The nitrided table surface keeps stable after long‑time workshop operation. Five‑sided hole layout supports flexible multi‑direction clamping. Satisfied with the table's performance, the user plans to buy another table plus extra tooling accessories for his workshop.

Interested in our 3D D28 Welding Table Featuring Quick Fixturing and Clamping Capabilities?

Whether you need a bare table, support stands or full sets of modular clamping tooling, we are ready to assist you. Drop your inquiry now to get competitive pricing and technical support.
