D28 Modular Welding Table with Interchangeable Fixturing Accessories

Name: D28 Modular Welding Table with Interchangeable Fixturing Accessories
Brand: WUXI LEMAR
Price: 500 USD

D28 Modular Welding Table with Interchangeable Fixturing Accessories Manufactures

MOQ : 1 PCS

Delivery Time : 15-25 work days

Flatness : 0.02mm/m

Payment Terms : D/P,T/T,D/A,L/C

Hole Grid Pitch : 100 mm ±0.05 mm

Material : Q355 high‑strength steel plate / HT300 gray cast iron

Repeat Positioning Accuracy : ±0.02‑0.05 mm

Model Number : D28

Machined Faces : 5‑sided precision machining (top surface + four side faces)

Price : 500-1500 USD

Tabletop Thickness : 25 mm

Certification : CE

Supply Ability : 500 units/month

Hole Diameter : Φ28 mm (H7 tolerance)

Packaging Details : 4000*2000*200mm

Surface Hardness : HV550‑900 after nitriding treatment

Brand Name : WUXI LEMAR

Recommended Working Temperature : -10℃ ~ +60℃

Place of Origin : WUXI , CHINA

Contact Now

D28 Modular Welding Table with Interchangeable Fixturing Accessories

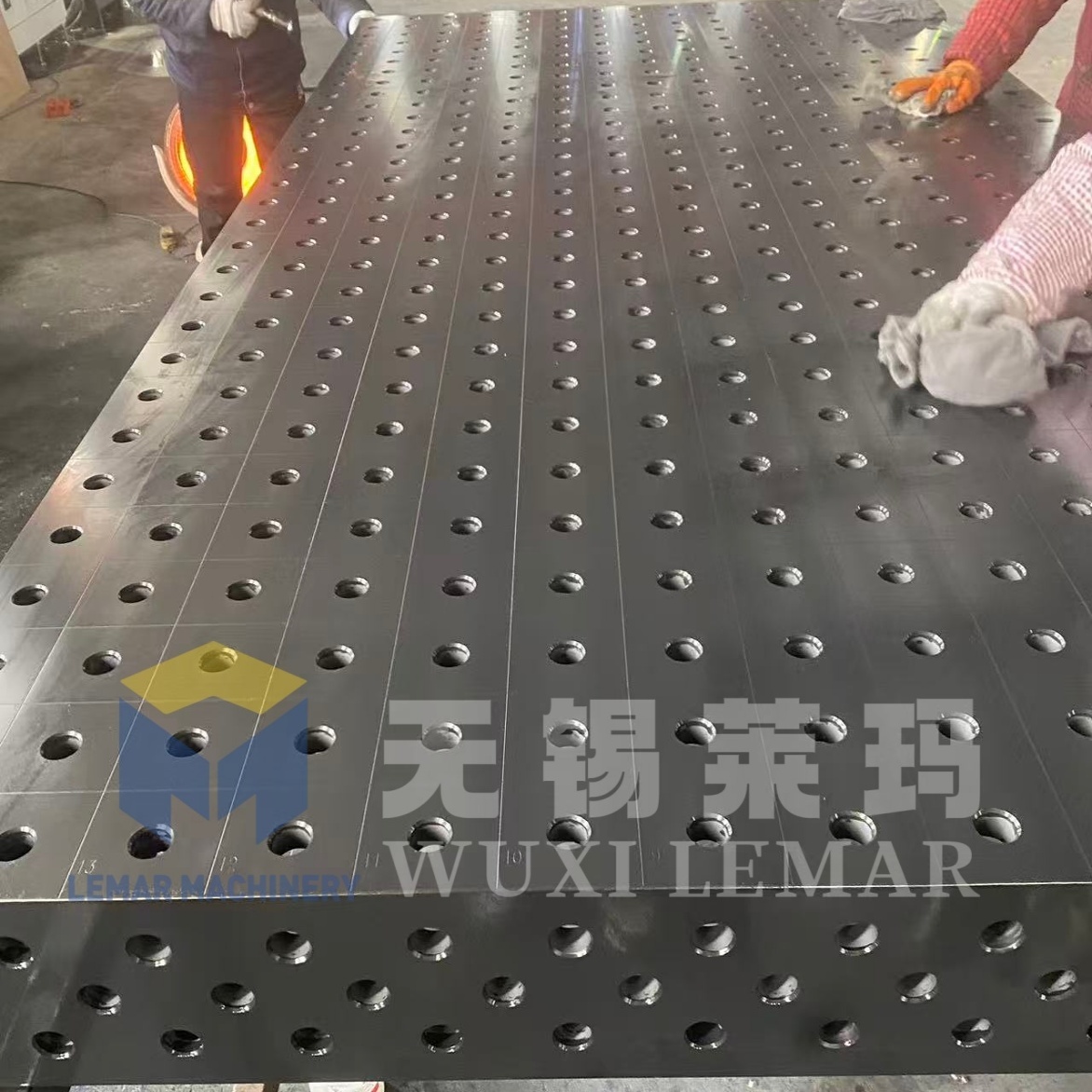

The D28 Modular Welding Table with Interchangeable Fixturing Accessories is a heavy-duty System-28 standard 3-dimensional flexible welding clamping platform. Built for heavy-load metal fabrication, this all-in-one modular system features Φ28 mm precision holes arranged in a 100 mm grid across the tabletop and four side faces. All fixturing accessories are fully interchangeable, allowing welders to quickly build custom clamping setups for diverse workpieces without expensive custom jigs.

Manufactured from Q355 steel or HT300 cast iron with nitrided surface treatment, it delivers outstanding anti-spatter performance, high rigidity and long-term dimensional stability. Compatible with both manual welding and robotic welding cells, it is widely applied in structural steel, machinery frame, agricultural equipment and heavy-duty metal assembly.

Key Technical Parameters

Item	Specification
Hole Diameter	Φ28 mm (H7 tolerance)
Hole Grid Pitch	100 mm ±0.05 mm
Tabletop Thickness	25 mm
Flatness	Standard: ≤0.1 mm/1000 mm; High-precision Grade-0: ≤0.05 mm/1000 mm
Repeat Positioning Accuracy	±0.02-0.05 mm
Material	Q355 high-strength steel plate / HT300 gray cast iron; Overall annealing for stress relief
Surface Treatment	Nitriding treatment, hardness HV550-900, anti-spatter, wear-resistant and corrosion-resistant
Static Load Capacity	Standard legs: 2-5 tons; Reinforced frame base: up to 5-10 tons
Common Tabletop Sizes	1000×1000 / 1500×1000 / 2000×1000 / 2400×1200 / 3000×1500 / 4000×2000 mm, custom splicing supported

Design Details

Five-sided opening design: The top surface and four sides of the worktable are all machined with D28 holes. These side holes allow for the installation of side positioning blocks and lateral clamping fixtures to secure tall workpieces, eliminating the need to rely solely on clamps on top of the worktable.
Chamfered hole openings: Chamfered hole openings facilitate the insertion of locking pins and prevent damage. Without chamfering, pin alignment would be difficult.
Dust plugs: Each Φ28 hole is equipped with a plastic dust plug to prevent metal shavings and welding slag from falling into the hole. These plugs must be used when not in use.
Chamfered worktable edges: Prevents bumps and scratches during handling and operation, and avoids damage to the welded workpiece.
Support legs: Rubber pads on the bottom of the legs protect the ground and allow for fine-tuning of the level. The foot screws typically have a travel of ±30mm for adjusting the worktable surface.
Grounding design: A grounding terminal is provided on the worktable. During welding, the welding machine's ground wire can be connected to prevent sparking from the workpiece and damage to the worktable.

Robot Automation Adaptation

The D28 is a mainstream tooling platform for robotic welding stations:

The flatness of the table surface and the accuracy of the holes meet the robot positioning requirements
It can be used with positioners, rotary tables, and tilting tables. The D28 welding table can be mounted on a positioner to achieve workpiece rotation welding
It can be equipped with pneumatic/hydraulic clamps to replace manual clamps and be integrated into the robotic production line
When the robot is working, attention should be paid to the protruding height of the locking pin to prevent interference and collisions with the robot arm

FAQ

Q: Do you accept small trial orders?

A: Yes, small trial orders are acceptable. We support sample order for quality verification before bulk purchase.

Q: What is the maximum static load capacity?

A: Standard legs: 2-5 tons. Reinforced heavy-duty frame base: up to 5-10 tons. Please avoid concentrated point heavy loading.

Q: Can I get the inspection report before shipment?

A: Yes. We can send you the inspection report with actual measured data before shipment for your pre-acceptance.

Q: What trade terms do you support?

A: We accept EXW, FOB, CIF, DAP, DDP. We can arrange sea freight, air freight and door-to-door delivery according to your requirement.

Q: Do you support shipping to my country?

A: We ship globally to most countries. Please tell us your destination port or address for shipping cost calculation.

Choose our D28 Modular Welding Table with Interchangeable Fixturing Accessories for reliable modular welding clamping.
